SKM28C-58C(HS)

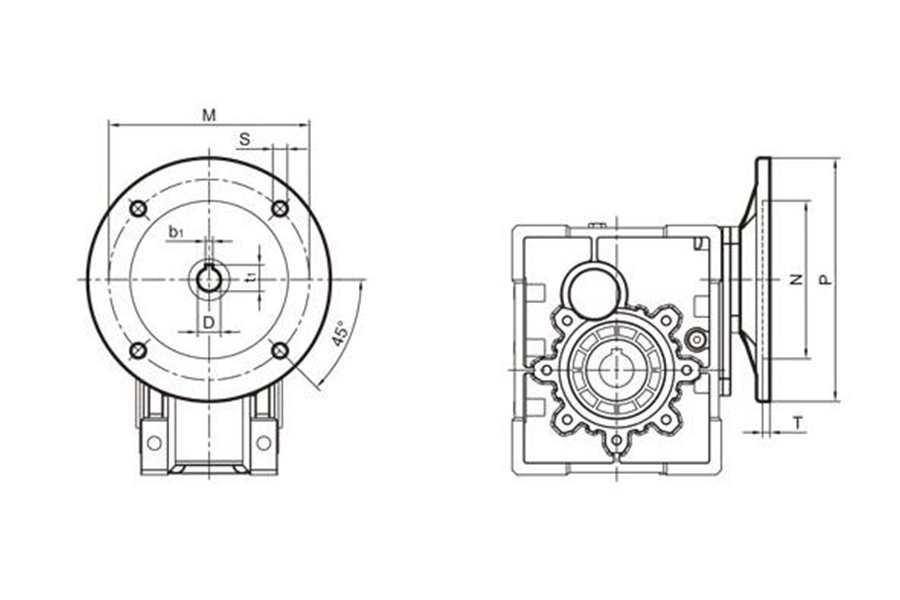

SKM..IEC Input Flange Dimension

SKM	IEC						keyway		ratio
	PAM-IEC	N	M	P	S	T	b1	t1	7.5	10	12.5	15	20	25	30	40	50	60	75	100	125	150	200	250	300
									D
									B										C
28	63B5	95	115	140	9	4	4	12.8	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11
	71B5	110	130	160	9	5	5	16.3	14	14	14	14	14	14	14	14	14	14	14	14	14	-	-	-	-
	71B14	70	85	105	7	5	5	16.3	14	14	14	14	14	14	14	14	14	14	14	14	14	-	-	-	-
	80B5	130	165	200	11	5	6	21.8	19	19	19	19	19	19	19	19	19	19	-	-	-	-	-	-	-
	80B14	80	100	120	7	5	6	21.8	19	19	19	19	19	19	19	19	19	19	-	-	-	-	-	-	-
	90B5	130	165	200	11	5	8	27.3	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-	-	-
	90B14	95	115	140	9	5	8	27.3	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-	-	-
38	63B5	95	115	140	9	4	4	12.8	-	-	-	-	-	-	-	11	11	11	11	11	11	11	11	11	11
	71B5	110	130	160	9	5	5	16.3	-	-	-	14	14	14	14	14	14	14	14	14	14	-	-	-	-
	71B14	70	85	105	7	5	5	16.3	-	-	-	14	14	14	14	14	14	14	14	14	14	-	-	-	-
	80B5	130	165	200	11	5	6	21.8	19	19	19	19	19	19	19	19	19	19		-	-	-	-	-	-
	80B14	80	100	120	7	5	6	21.8	19	19	19	19	19	19	19	19	19	19		-	-	-	-	-	-
	90B5	130	165	200	11	5	8	27.3	24	24	24	24	24	24	24	24	24		-	-	-	-	-	-	-
	90B14	95	115	140	9	5	8	27.3	24	24	24	24	24	24	24	24	24		-	-	-	-	-	-	-
48	63B5	95	115	140	9	4	4	12.8	-	-	-	-	-	-	-	-	-	-	11	11	11	11	11	11	11
	71B5	110	130	160	9	5	5	16.3	-	-	-	-	-	-	-	14	14	14	14	14	14	14	14	14	14
	80B5	130	165	200	11	5	6	21.8	-	-	-	19	19	19	19	19	19	19	19	19	19	19	-	-	-
	80B14	80	100	120	7	5	6	21.8	-	-	-	19	19	19	19	19	19	19	19	19	19	19	-	-	-
	90B5	130	165	200	11	5	8	27.3	24	24	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-
	90B14	95	115	140	9	5	8	27.3	24	24	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-
	100/112B5	180	215	250	13	5	8	31.3	28	28	28	28	28	28	28/-	28/-	-	-	-	-	-	-	-	-	-
	100/112B14	110	130	160	9	5	8	31.3	28	28	28	28	28	28	28/-	28/-	-	-	-	-	-	-	-	-	-
58	63B5	95	115	140	9	4	4	12.8	-	-	-	-	-	-	-	-	-	-	11	11	11	11	11	11	11
	71B5	110	130	160	9	5	5	16.3	-	-	-	-	-	-	-	-	14	14	14	14	14	14	14	14	14
	80B5	130	165	200	11	5	6	21.8	-	-	-	19	19	19	19	19	19	19	19	19	19	19	19	19	19
	80B14	80	100	120	7	5	6	21.8	-	-	-	19	19	19	19	19	19	19	19	19	19	19	19	19	19
	90B5	130	165	200	11	5	8	27.3	24	24	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-
	90B14	95	115	140	9	5	8	27.3	24	24	24	24	24	24	24	24	24	24	-	-	-	-	-	-	-
	100/112B5	180	215	250	13	5	8	31.3	28	28	28	28	28	28	28	28	28/-	28/-	-	-	-	-	-	-	-
	100/112B14	110	130	160	9	5	8	31.3	28	28	28	28	28	28	28	28	28/-	28/-	-	-	-	-	-	-	-

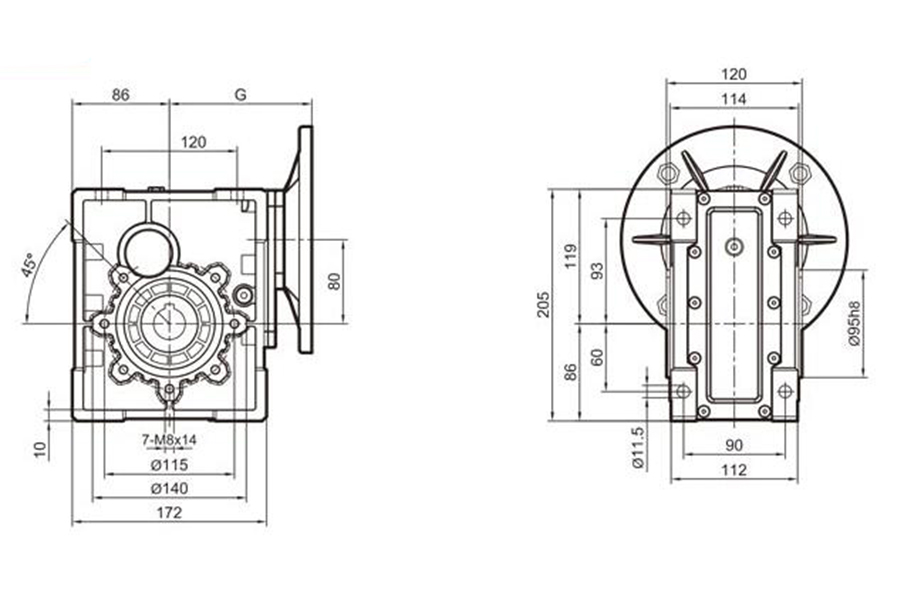

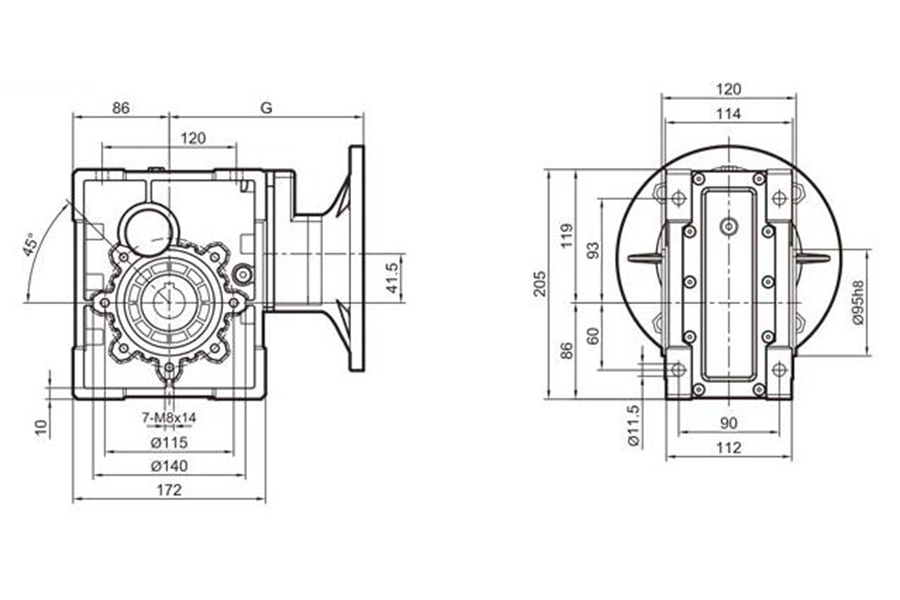

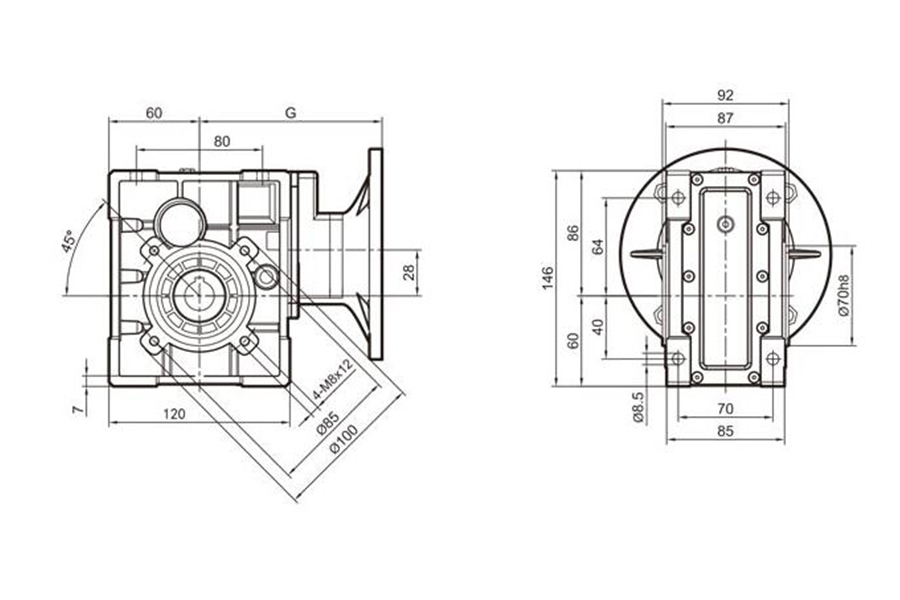

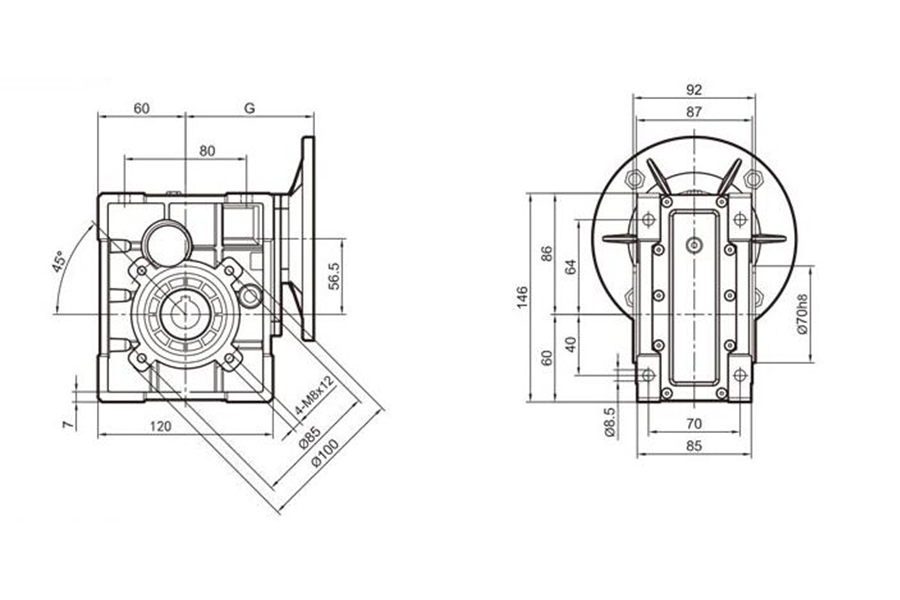

SKM28..B..IEC

SKM28..B..IEC

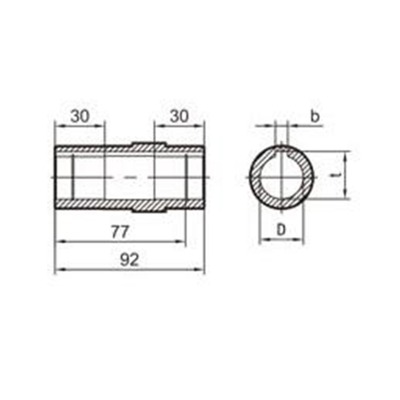

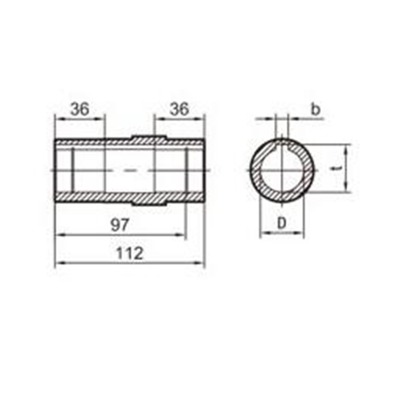

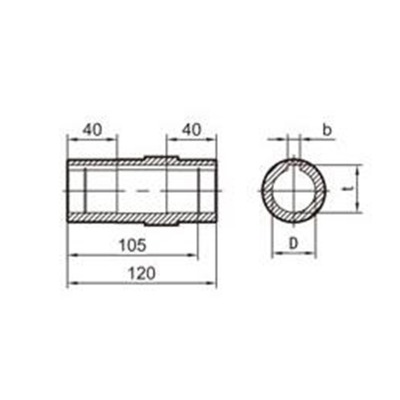

Output hole

IEC	SKM	G
63B5	28B	101.5
	28C	119.5
71B5/B14	28B	102.5
	28C	120.5
80B5/B14	28B	122.5
90B5/B14	28B	122.5

DH8	b	t
20*	6	22.8
25	8	28.3
*Only on request

SKM	Kg
28B	4.2
28C	5
Weight without motor

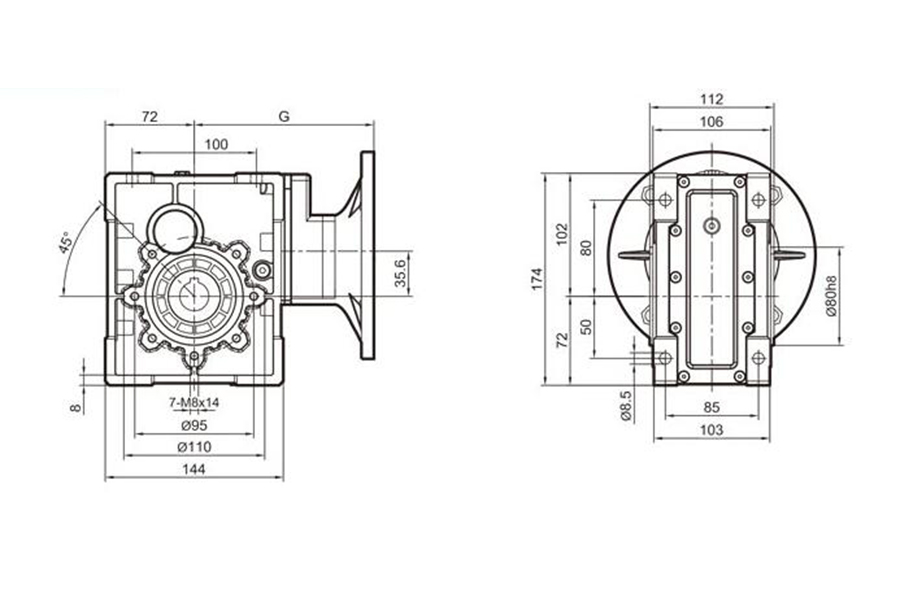

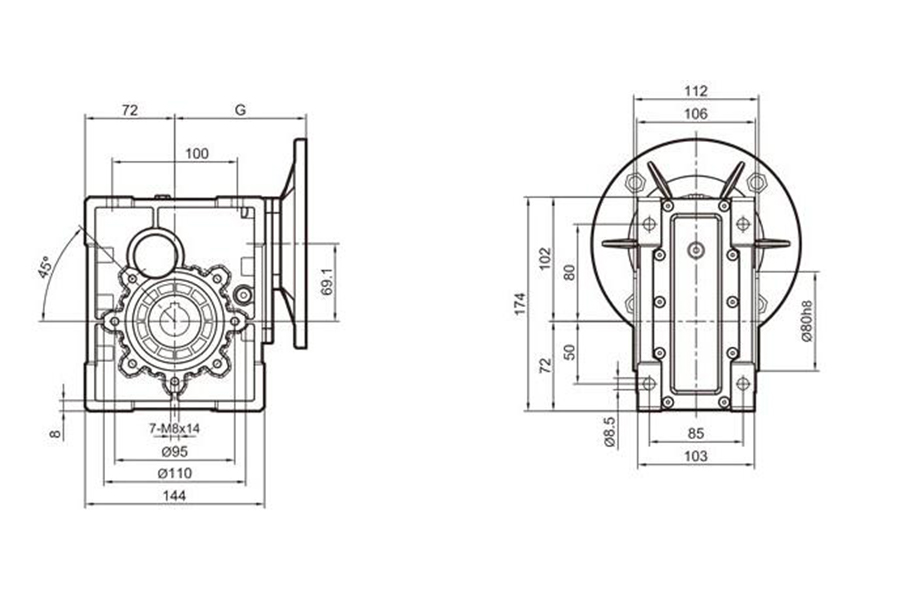

SKM38..B..IEC

SKM38..B..IEC

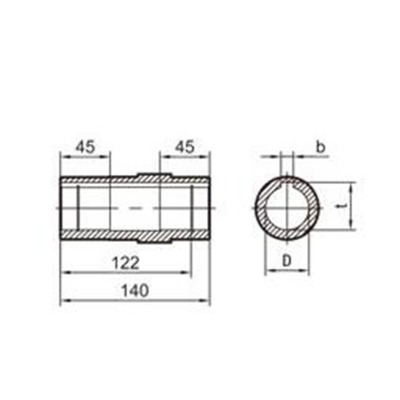

Output hole

IEC	SKM	G
63B5	38B	112.5
	38C	137.5
71B5/B14	38B	119.5
	38C	144.5
80B5/B14	38B	139.5
	38C	164.5
90B5/B14	38B	139.5

DH8	b	t
25*	8	28.3
28	8	31.3
*Only on request

SKM	Kg
38B	6.0
38C	6.8
Weight without motor

SKM48..B..IEC


SKM48..B..IEC

Output hole

IEC	SKM	G
63B5	48C	154
71B5	48B	161
	48C	191
80B5/B14	48B	151
	48C	181
90B5/B14	48B	151
	48C	181
100/112B5	48B	161
100/112B14	48B	161

DH8	b	t
28	8	31.3
30*	8	33.3
35*	10	38.3
*Only on request



SKM	Kg
48B	9.2
48C	10.8
Weight without motor

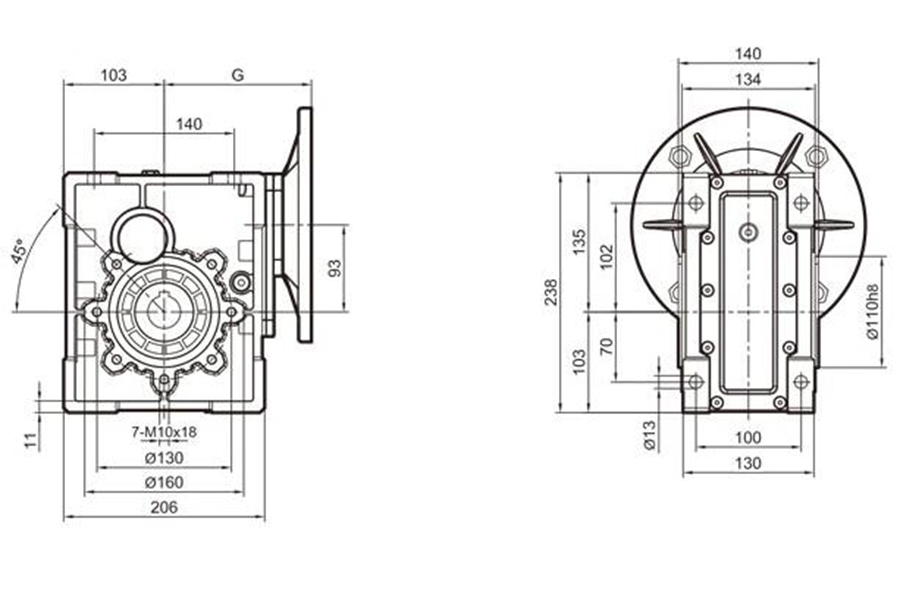

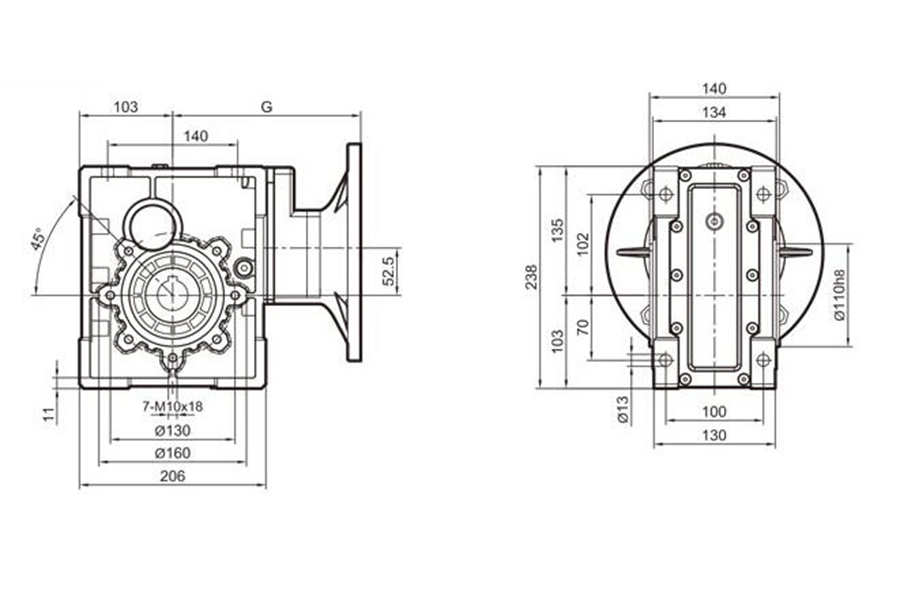

SKM58..B..IEC


SKM58..B..IEC

Output hole

IEC	SKM	G
63B5	58C	176.5
71B5	58B	174
	58C	213.5
80B5/B14	58B	164
	58C	203.5
90B5/B14	58B	164
	58C	203.5
100/112B5	58B	174
100/112B14	58B	174



DH8	b	t
35	10	38.3
38*	10	41.3
Only on request

SKM	Kg
58B	13.3
58C	14.8
Weight without motor

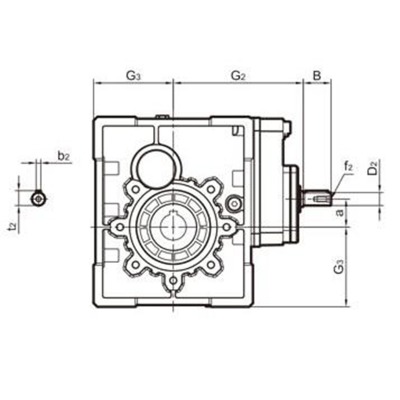

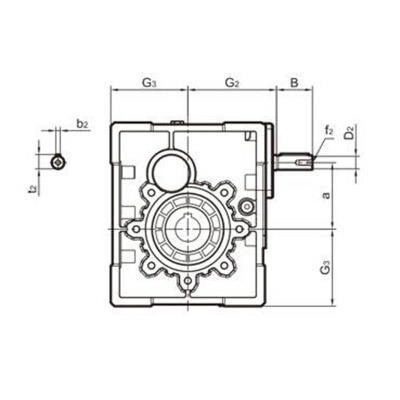

SKM..B..HS	SKM..C..HS

SKM	B	D₂j6	G₂	G₃	a	b₂	t₂	f₂
28B	23	11	70	60	56.5	4	12.5	-
28C	23	11	88	60	28	4	12.5	-
38B	30	14	85	72	69.1	5	16	M6
38C	23	11	110	72	35.6	4	12.5	-
48B	40	16	99	86	80	5	18	M6
48C	30	14	129	86	41.5	5	16	M6
58B	40	19	112	103	93	6	21.5	M6
58C	30	14	152	103	52.5	5	16	M6
