Choosing Between Single and Double Reduction Worm Gear Speed Reducers

Worm gear speed reducers are essential components in mechanical systems, offering efficient power transmission. These devices play a crucial role in reducing the rotational speed of the input shaft to provide greater torque output. In the world of worm gear reducers, one key decision is whether to use a single reduction or double reduction worm gear speed reducer.

Understanding Worm Gear Speed Reducers

Before diving into the comparison, let’s briefly look at worm gear speed reducers. A worm gear system consists of a worm (the driving gear) and a worm wheel (the driven gear). The worm is typically a screw-like gear that meshes with a wheel, converting rotational motion into linear motion while reducing the speed and increasing the torque.

Single reduction and double reduction systems are differentiated by the number of stages in the gear reduction process. The stages refer to the number of gear pairs that work together to achieve the desired reduction.

Single Reduction Worm Gear Speed Reducers

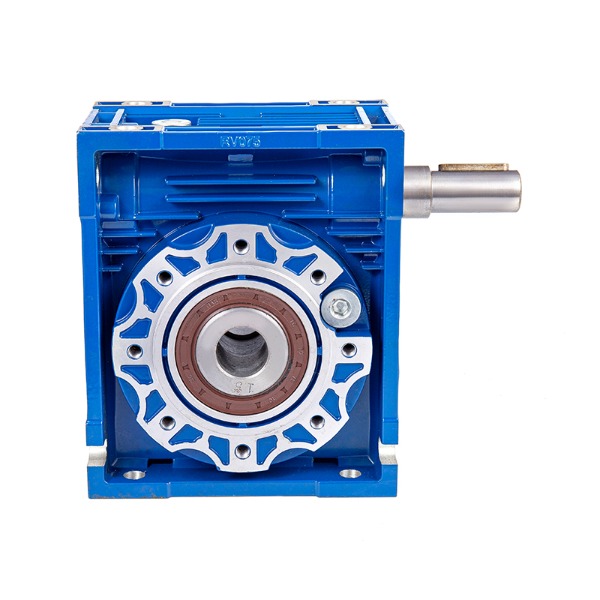

In a single reduction worm gear speed reducer, the input power is transmitted through one gear pair – the worm and the worm wheel. This means that the reduction ratio is achieved in just one stage of gearing. The single reduction setup is often simpler and more cost-effective, making it ideal for applications that require moderate speed reduction.

Advantages of Single Reduction Systems:

• Simplicity: The single-stage system is less complex, leading to fewer components that could potentially fail.
• Cost-Effective: With fewer parts, single reduction reducers are often more affordable to manufacture and maintain.
• Compact Design: Due to the fewer stages, single reduction systems are typically smaller and lighter.

Applications of Single Reduction Systems:

• Low to Moderate Torque Needs: Applications that do not require extreme torque can benefit from the simpler design of single reduction worm gear reducers.
• Light to Medium Duty Machinery: Single reduction systems are ideal for lighter machinery or equipment where space constraints are a concern.

Double Reduction Worm Gear Speed Reducers

A double reduction worm gear speed reducer consists of two stages of gear reduction. In this system, the input power is first transmitted through one worm gear pair, then the output of that pair drives another gear pair. This results in a more substantial reduction ratio, making double reduction reducers ideal for applications where a higher reduction ratio is required.

Advantages of Double Reduction Systems:

• Higher Reduction Ratios: The two-stage design allows for a more significant reduction in speed, providing greater torque output.
• Enhanced Efficiency: With the added gear stage, double reduction systems can be tuned for specific applications, providing more efficient power transfer at lower speeds.
• Improved Durability: The load is distributed across multiple stages, leading to less wear on individual components.

Applications of Double Reduction Systems:

• High Torque Applications: When extremely high torque is required, double reduction systems are the better choice as they can achieve greater torque without compromising speed.
• Heavy Duty Machinery: Double reduction worm gears are commonly used in heavy machinery and industrial equipment where performance and durability are critical.

Key Differences Between Single and Double Reduction Systems

Factors to Consider When Choosing a Worm Gear Speed Reducer

When deciding between single and double reduction worm gear speed reducers, several factors should be considered to ensure optimal performance in your system.

Torque Requirements: If your application requires high torque, a double reduction system may be the better option due to its higher torque capacity.

Speed Reduction: For applications that need significant speed reduction, a double reduction system can provide the required performance.

Space Constraints: If space is limited, a single reduction worm gear reducer may be the best choice due to its more compact design.

Budget: Double reduction systems are more expensive than single reduction systems, so cost may be a determining factor depending on your budget.

Efficiency: For high-efficiency needs at lower speeds, a double reduction worm gear speed reducer would be the ideal option.

Maintenance and Longevity

The maintenance needs and lifespan of a worm gear speed reducer depend heavily on the design and application. Single reduction worm gears tend to have simpler maintenance requirements due to fewer parts. However, double reduction systems can offer greater durability and longevity, as the load is spread across more stages, reducing wear and tear.

FAQ

1. What is the main advantage of a double reduction worm gear speed reducer over a single reduction system?

• Double reduction systems offer higher reduction ratios, making them ideal for high-torque applications.

2. Can a single reduction worm gear reducer be used in heavy-duty machinery?

• Single reduction reducers are more suited for light to moderate-duty applications. For heavy-duty machinery, a double reduction system is generally recommended.

3. Are double reduction worm gear speed reducers more efficient?

• Yes, double reduction systems are generally more efficient at lower speeds, providing better power transmission.

4. What are the key applications for single reduction worm gear speed reducers?

• Single reduction worm gear speed reducers are best for light to medium-duty machinery and applications requiring lower torque and speed reduction.

5. How does the cost compare between single and double reduction worm gear speed reducers?

• Single reduction systems are typically more affordable, while double reduction systems tend to be more expensive due to the additional complexity and parts.
