Common Issues with Worm Gearbox Transmissions and How to Fix Them

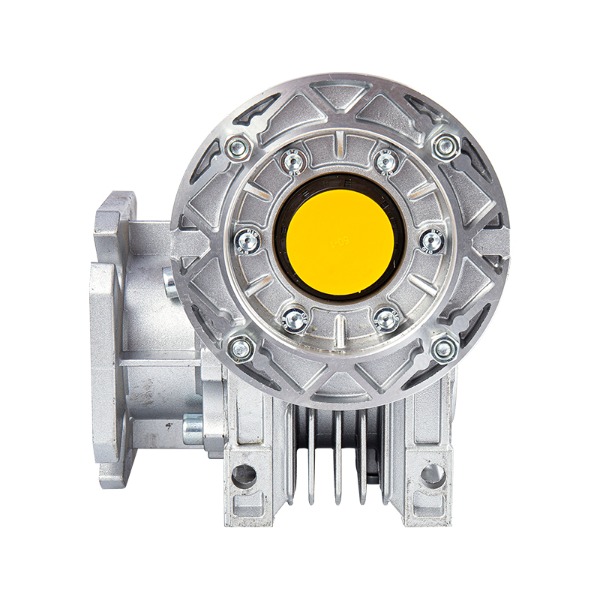

Worm gearboxes transmission systems are widely used in industrial machinery, conveyor systems, lifts, and automation equipment due to their compact design, high reduction ratios, and quiet operation. However, like any mechanical power transmission device, they are prone to specific failures. Understanding these common issues and knowing how to address them can significantly improve reliability and service life.

Excessive Wear of the Worm Wheel

The most common failure in a worm gearboxes transmission is accelerated wear on the bronze worm wheel. This occurs due to sliding friction between the hardened steel worm and the softer bronze wheel. Improper lubrication, misalignment, or overloading dramatically increases wear rates.

Symptoms:

• Increased backlash
• Noisy operation (grinding or squealing)
• Metal particles in lubricant
• Reduced output torque

Fixes:

• Replace the worn worm wheel and inspect the worm for damage.
• Use the correct viscosity and type of lubricant (usually EP gear oils or synthetics).
• Ensure proper alignment of input and output shafts.
• Avoid shock loads and frequent start-stops under full load.

Overheating

Heat generation is inherent to worm gearboxes transmission because of sliding contact. However, excessive temperature (above 80–90°C) degrades lubricant, increases wear, and can cause seal failure. Overheating often results from high ambient temperatures, continuous operation at full load, or insufficient oil volume.

Symptoms:

• Housing too hot to touch
• Oil smell or discoloration
• Oil leakage past seals
• Reduced efficiency

Fixes:

• Verify oil level and top up if needed.
• Switch to a higher-grade synthetic oil with better thermal stability.
• Add external cooling fins or a forced ventilation fan.
• Reduce service factor (lower input speed or load).

Pro tip: In continuous-duty applications, monitoring oil temperature with a simple thermocouple can prevent catastrophic failure.

Oil Leakage

Oil leaks are a persistent nuisance in worm gearboxes transmission units. Common leak points include input/output shaft seals, housing mating surfaces, and breather vents. Leakage not only wastes lubricant but also allows contaminants ingress.

Symptoms:

• Puddles beneath the gearbox
• Low oil level after short operation
• Visible wetness around seals or joints

Fixes:

• Replace worn shaft seals – ensure the shaft surface is not scored.
• Apply anaerobic sealant to housing joints during reassembly.
• Clean or replace clogged breathers to prevent pressure buildup.
• Avoid overfilling; follow manufacturer’s fill level.

Excessive Vibration and Noise

While worm gearboxes transmission runs more quietly than helical or spur gearboxes, unusual vibration or rattling indicates trouble. Causes range from bearing failure, worm shaft misalignment, or damaged gear teeth.

Symptoms:

• Cyclic knocking or rumbling
• Visible shaft oscillation
• Accelerometer readings exceeding normal baseline

Fixes:

• Check coupling alignment between motor and gearbox input.
• Inspect bearings for pitting or cage damage; replace if necessary.
• Verify that the worm shaft axial play is within specification (typically 0.05–0.15 mm).
• Tighten foundation bolts to eliminate resonance.

Premature Bearing Failure

Bearings support the worm shaft and worm wheel shaft. In a worm gearboxes transmission, thrust bearings on the worm shaft withstand high axial loads. Inadequate lubrication, contamination, or preload errors cause early bearing failure.

Symptoms:

• Roughness when turning input shaft by hand
• High-frequency vibration
• Metallic noise during operation

Fixes:

• Replace bearings with same precision class (e.g., P6 or P5).
• Use correct preload – too much causes overheating; too little causes play.
• Improve filtration of lubricant to remove particles >20 μm.
• Ensure housing bores are not worn or out-of-round.

Lubricant Contamination and Degradation

Lubricant life in worm gearboxes transmission is shorter than in other gear types due to higher operating temperatures and sliding action. Water ingress, oxidation, and particle contamination are common.

Symptoms:

• Milky or cloudy oil (water)
• Black, burnt smell (oxidation)
• Sludge deposits on housing interior

Fixes:

• Perform oil changes at regular intervals (every 2,500–5,000 hours typical).
• Use synthetic PAO or PAG oils designed for worm drives.
• Install desiccant breathers to prevent moisture entry.
• Take periodic oil samples for laboratory analysis.

Backlash Increase Over Time

Initial backlash in a worm gearboxes transmission is necessary for oil film formation and thermal expansion. However, excessive backlash reduces positioning accuracy and causes impact loads. Gradual backlash increase indicates wear on the worm wheel teeth.

Symptoms:

• Poor repeatability in servo applications
• Clunking during direction reversal
• Looseness felt when oscillating output shaft

Fixes:

• For split worm designs, adjust axial position of worm to reduce backlash.
• Replace worm wheel if tooth wear exceeds 15% of original thickness.
• In non-adjustable gearboxes, consider replacing the entire gear set.
• Avoid repeated reverse load cycles if precision is critical.

Preventive Maintenance Checklist for Worm Gearboxes Transmission

To maximize service life, implement the following routine:

• Weekly: Visual inspection for leaks, unusual noise, and housing temperature.
• Monthly: Check oil level and top up with same lubricant type.
• Quarterly: Sample oil for contamination; clean breather.
• Annually: Measure backlash and bearing endplay; replace oil regardless of condition if operating >80°C.
• Every 2 years: Disassemble, clean, inspect worm and wheel contact pattern, replace seals.

Conclusion

Worm gearboxes transmission systems are robust and reliable when properly maintained. Most common issues—wear, overheating, leaks, vibration, bearing failure, lubricant degradation, and backlash—are preventable through correct lubricant selection, regular inspection, and prompt repairs. By understanding the root causes and applying the fixes outlined above, maintenance teams can reduce unplanned downtime by 50% or more and extend gearbox life significantly. Always consult the original equipment manual for specific tolerances and lubricant grades, and remember: in worm drives, temperature is the best indicator of health.
