Load-carrying capacity: There are SWL2.5, SWL5, SWL10 and other models, with lifting capacity ranging from 2.5 tons to 120 tons.
- Transmission ratio: divided into normal speed ratio (P) and slow speed ratio (M).

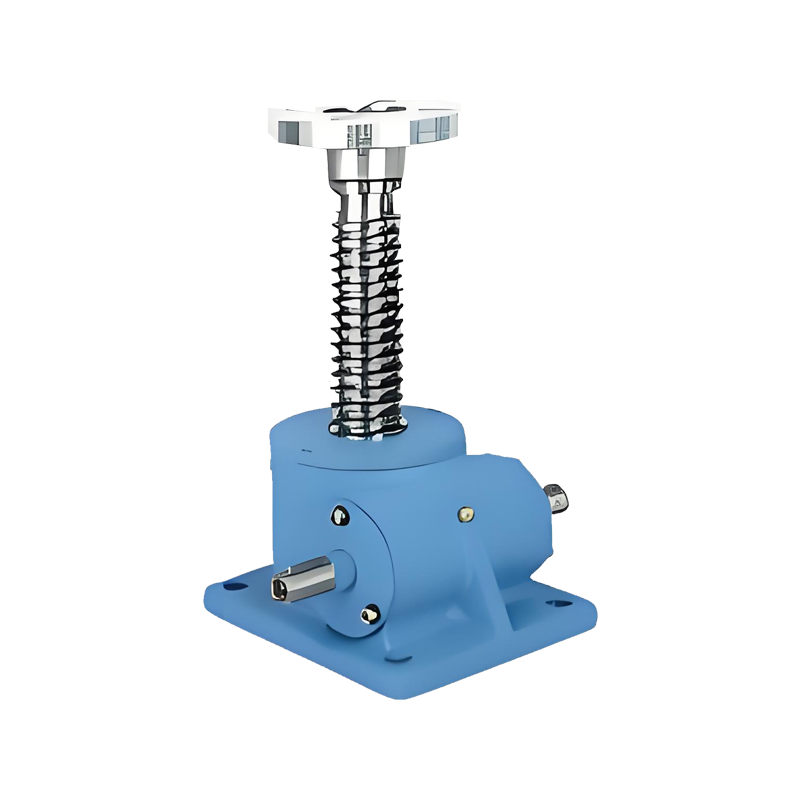

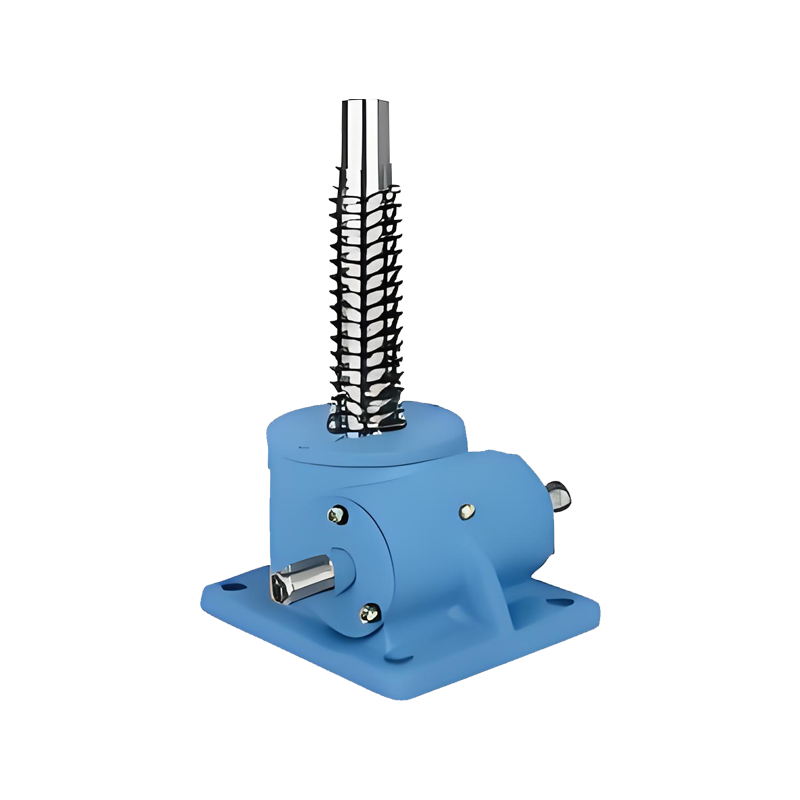

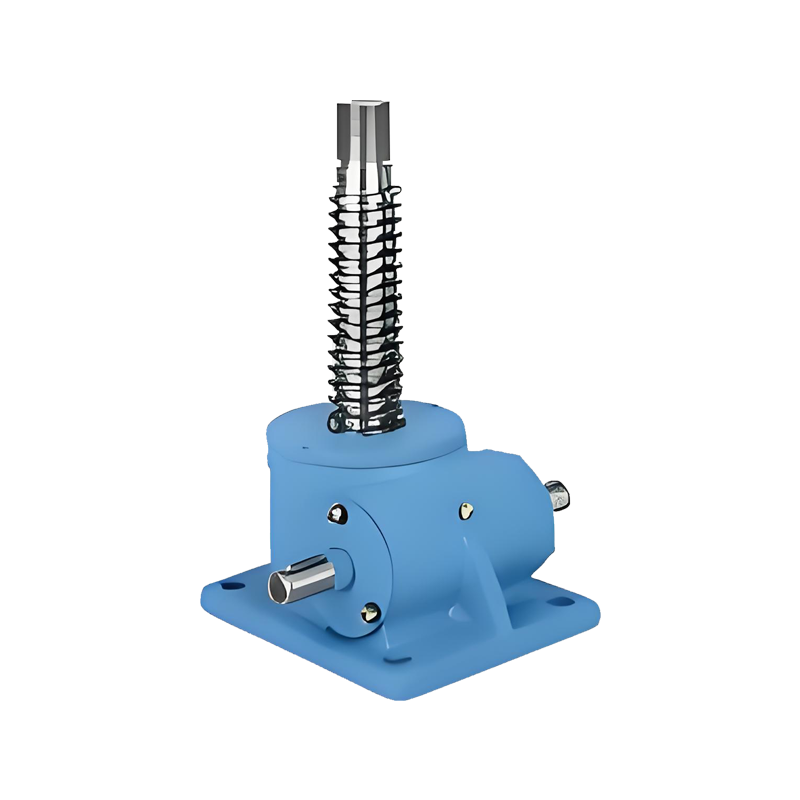

- Screw head form: Type 1 has Ⅰ cylindrical type, Ⅱ flange type, Ⅲ thread type, Ⅳ flat head type; Type 2 has Ⅰ cylindrical type, Ⅲ thread type.
- Screw protection: Type 1 has basic type, anti-rotation type (F), with protective cover type (Z); Type 2 is the basic type.
- Input speed: Generally up to 1500r/min, some products can reach 4500-2500r/min.
- Lifting speed: For example, under the normal speed ratio of SWL5, the lifting speed is 0.044m/min at a worm speed of 50r/min, and 0.0146m/min at a slow speed ratio.
The SWL series worm gear screw lift is a basic lifting component with many advantages, such as compact structure, small size, light weight, no noise, safe and convenient, flexible use, high reliability, wide power source, multiple supporting functions, and long service life. It can be used alone or in combination, and can accurately control and adjust the lifting or propulsion height according to a certain procedure. It can be driven directly by an electric motor or other power, or manually.
In order to improve the efficiency and carrying capacity of the SWL series worm gear screw lift, a special and advanced process has been developed to improve the comprehensive performance of the lift to meet the requirements of our customers.
The SWL series worm gear screw lift has different structural types and assembly types, and the lifting height can be customized according to user requirements.
It is widely used in various industries such as machinery, metallurgy, water conservancy, chemical industry, medical treatment, culture, and health. It can be used for height adjustment of automated production lines, lifting and lowering of lifting equipment, platform lifting of material conveying systems, and also for scaffolding lifting in construction, stage equipment lifting, and parking space lifting in stereo garages.
Compact structure: small size, light weight, can save installation space.
- Smooth transmission: worm gear transmission, small impact vibration, no noise.
- Flexible use: wide range of power sources, electric, manual, can be used alone or in combination.
- Safe and reliable: trapezoidal lead screw has automatic locking function, can be equipped with travel switch.
- Long service life: using high-quality materials, such as cast iron box, copper worm gear, etc.
Material selection: The box body is made of cast iron QT400, the worm wheel is made of 9-4 copper, the worm is made of 20CrMnTi finely ground worm and high-frequency heat treatment, and the screw is finely processed with 45 steel with an accuracy of C7.
- Manufacturing process: The worm is finely ground and the screw is finely processed to ensure the transmission accuracy and surface quality. High-load flat bearing rolling friction is used to ensure that the lift is sturdy and durable and runs smoothly.
For exclusive deals and latest offers, sign up by entering your email address below.
1. What is an NRV Worm Gear Reducer? The NRV worm gear speed reducer is a widely used mechanical device in industrial applications. It belongs to the family of worm gear reducers and is designed to reduce the rotational speed of an input shaft while increasing the torque output...
View MoreIn the stage of modern industrial precision transmission, Worm Gear Machine Screw Lift has become the core "transmission hub" of many industries with its unique structural design and excellent performance. From the production line of manufacturing industry to the lifting platform...
View MoreWhat is worm gear speed reducer A worm gear speed reducer is a reduction transmission device composed of a worm wheel and a worm. Its working principle is based on the meshing transmission of the worm wheel and the worm. The rotation of the worm drives the worm wheel to rotate, t...
View MoreIn the rapid development of industrial automation, linear lifting devices have become key components for achieving precise control, heavy-duty transmission and high integration. As one of the core equipment, SWL Worm Gear Screw Lifter has been widely used in many industries due to its compact structure, smooth operation and strong load capacity. So, what technical advantages does SWL worm gear screw lift have? In which fields does it play a key role?
What is SWL Worm Gear Screw Lifter?
SWL worm gear screw lift is a mechanical device that uses a worm gear reduction mechanism as the core transmission unit and cooperates with a screw to achieve linear lifting motion. It drives the worm gear to rotate through a motor or manual drive, thereby achieving the up and down linear movement of the screw.
The main structural components include:
Worm gear reduction mechanism: responsible for power transmission and torque amplification.
Screw or nut assembly: realizes linear push-pull action.
Anti-rotation device: ensures smooth lifting without deviation.
Box structure: Made of high-strength materials, corrosion-resistant and good heat dissipation.
What are the significant advantages of SWL lifts?
In industrial applications, SWL screw lifts are ideal lifting control components due to their unique structural design and stable performance.
High load capacity and transmission efficiency
The SWL series is designed with heavy-duty conditions in mind, with a wide range of loads, from hundreds of kilograms to tens of tons. Especially in situations where multiple linkage synchronous liftings are used, it can still maintain high stability.
Flexible installation, adaptable to a variety of postures
It can be installed in vertical, horizontal, inclined and other directions, supports thrust or pull working modes, and is suitable for production lines or equipment with complex spatial layouts.
Precise control, suitable for automation systems
With servo motors or PLC control systems, it can achieve precise position control and multi-point linkage, and is an indispensable component in automated assembly lines and intelligent equipment.
Easy maintenance and long service life
Compact structure, no obvious noise during operation, reasonable lubrication structure, low failure rate, and no frequent maintenance required for long-term operation.
In which industries is SWL Worm Gear Screw Lifter used?
SWL lifts have a wide range of applications, covering almost all industrial scenarios that require linear lifting or push-pull control.
Intelligent logistics conveying system: adjust the height of the conveyor line to achieve cargo sorting and transfer.
New energy equipment: such as precise angle adjustment in solar tracking devices.
Chemical and pharmaceutical equipment: used for height adjustment of reactors, metering containers, etc.
Robots and automatic production lines: realize automatic clamping, lifting, docking and other actions.
Electronics and optical industries: used for precision testing and lifting of operating platforms.
What is unique about the SWL products of Hangzhou Yinhang Reduction Gears Co., Ltd.?
As a well-recognized professional manufacturer in the industry, Hangzhou Yinhang Reduction Gears Co., Ltd. has accumulated more than 15 years of experience in the research and development and manufacturing of SWL worm gear screw lifts. Its products are highly competitive in the market due to the following aspects:
1. Optimized materials and exquisite craftsmanship
The worm gear is made of reliable alloy steel materials with high strength and high wear resistance. The screw part undergoes special heat treatment and surface hardening to ensure long life and high precision.
2. Beautiful shell, light and rust-proof
The box is made of aluminum alloy, which has a good appearance texture, is light and not easy to rust. It is suitable for industries with high cleanliness requirements such as food and medicine.
3. Low noise and smoother operation
The high-precision meshing design and the reasonable layout of the lubrication system effectively reduce operating noise and vibration, ensure silent operation of the equipment, and improve overall comfort and efficiency.
4. Strong customer customization capabilities
Non-standard customization can be carried out according to customer needs, including different installation methods, load capacities, output structures, etc., suitable for the integration of various complex systems.
5. Strong price competitiveness
Based on rich experience and efficient supply chain management system, Hangzhou Yinhang Reduction Gears Co., Ltd. can provide customers with market-competitive prices while ensuring quality.
Why choose Hangzhou Yinhang Reduction Gears Co., Ltd.?
Choosing the right partner is the key to ensuring project quality and equipment reliability. Hangzhou Yinhang Reduction Gears Co., Ltd. not only provides standardized products, but also attaches great importance to customer service, rapid response and technical support. Its products are stably used in well-known companies in many industries such as chemicals, food, ceramics, smart logistics, and new energy.
Through continuous innovation and high-standard manufacturing, Yinhang is gradually establishing an international brand influence and becoming a trusted supplier of worm gears and linear lifting solutions.
As a key equipment for industrial linear transmission, SWL worm gear screw lifts are being recognized by more and more manufacturing companies for their wide applicability and powerful performance. Only by choosing a supplier with solid manufacturing capabilities and mature technology accumulation can the lifting system be truly effective. If you are looking for high-quality, customizable SWL worm gear screw jacks, Hangzhou Yinhang Reduction Gears Co., Ltd. is undoubtedly a quality partner worth cooperating with.
