YL Series Capacitorstart And Run Single-phase Asynchrcnous Motor

Technical Performance Data

Motor Type	Power		Voltage	Current	Frequency	Speed	Efficiency	Power factor	ILR/Irated	TLR/trated	Noise
	kW	Hp	V	A	Hz	(r/min)	%	Cos			Lw dB (A)
YL-7112	0.37	0.5	220	2.8	50	2800	67	0.92	5.5	1.8	75
YL-7122	0.55	0.75	220	4	50	2800	70	0.92	5.5	1.8	75
YL-80M1-2	0.75	1	220	5	50	2800	72	0.92	5.5	1.8	75
YL-80M2-2	1.1	1.5	220	7.4	50	2800	74	0.95	5.5	1.8	75
YL-90S-2	1.5	2	220	9.6	50	2840	75	0.95	5.5	1.8	78
YL-90L-2	2.2	3	220	13.9	50	2840	76	0.95	5.5	1.7	78
YL-100L-2	3	4	220	19.3	50	2840	78	0.95	6	1.7	83
YL-112M-2	4	5	220	22.4	50	2840	79	0.95	6	1.7	83
YL-132S-2	5.5	7.5	220	32.9	50	2880	80	0.95	6	1.7	83
YL-7114	0.25	0.33	220	1.6	50	1400	68	0.92	5	1.7	70
YL-7124	0.37	0.5	220	2.4	50	1400	68	0.92	5	1.7	70
YL-80M1-4	0.55	0.75	220	4	50	1400	68	0.92	5	1.7	70
YL-80M2-4	0.75	1	220	5.1	50	1400	70	0.95	5	1.7	70
YL-90S-4	1.1	1.5	220	7.4	50	1400	71	0.95	5	1.7	73
YL-90L-4	1.5	2	220	9.8	50	1400	73	0.95	5	1.7	73
YL-100L1-4	2.2	3	220	14	50	1400	75	0.95	5	1.7	78
YL-100L2-4	3	4	220	18.6	50	1400	77	0.95	5	1.7	78
YL-112M-4	4	5.5	220	22.7	50	1430	78	0.95	5.5	1.7	83
YL-132S-4	5.5	7.5	220	33.3	50	1440	79	0.95	5.5	1.7	83

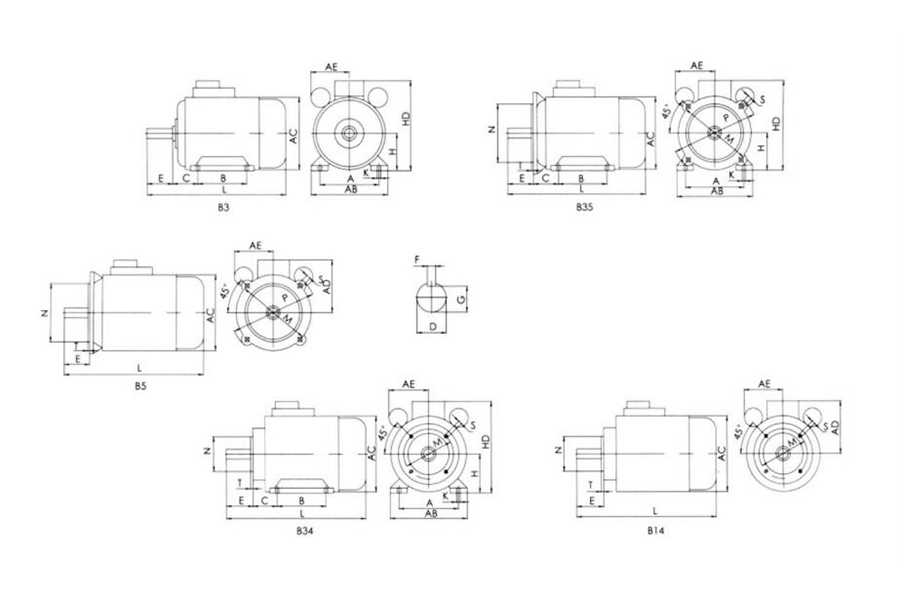

Dimensions Drawing

ML Cast Iron Housing

Frame No	Mounting Dimensions															External dimensions
	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AD	HD	L	AE
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	165	165	150	210	335	110
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	250	360	120
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	250	380/405	120
100L	180	140	63	28	60	8	24	100	12	215	180	250	0	14.5	4	205	220	180	260	455	130
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	14.5	4	245	250	190	285	475	140
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	14.5	4	280	262	210	335	550	150

ML Aluminum Housing

Frame No	Mounting Dimensions(mm)														External dimensions(mm)
	IMB3/B34/B5/B14									B34/B14					B5					B3/B34/B14						B5
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	AF	HD	L	AC	AD	L	AE
50	80	63	32	9	20	3	7	50	6	55	40	70	M5	-	-	-	-	-	-	100	110	75	-	125	155	-	-	-	-
56	90	71	36	9	20	3	7	56	6	65	50	80	M5	-	-	-	-	-	-	115	120	80	-	135	170	-	-	-	-
63	100	80	40	11	23	4	9	63	7	75	60	90	M5	3	115	95	140	10	3	130	130	100	-	165	230	130	100	250	-
71	112	90	45	14	30	5	11	71	7	85	70	105	M6	4	130	110	160	10	4	145	145	110	95	180	255	145	110	275	95
80	125	100	50	19	40	6	16	80	10	100	80	120	M6	4	165	130	200	12	4	160	165	120	110	200	295	175	120	300	110
90S	140	100	56	24	50	8	20	90	10	115	95	140	M8	4	165	130	200	12	4	180	185	120	130	220	310	185	130	335	120
90L	140	125	56	24	50	8	20	90	10	115	95	140	M8	4	165	130	200	12	4	180	185	120	130	220	335	185	130	360	120

Hangzhou Yinghang Reduction Gears Co., Ltd. : adjacent to Shanghai-Hangzhou-Ningbo Expressway and Xiaoshan International Airport, located in China's industrial and commercial center, with superior geographic information technology and humanistic environment, the company's products are sold all over the country and exported to Europe, America, the Middle East, South Asia and Australia.
After years of rapid and steady development, our company has become a backbone enterprise in Hangzhou Reducer Town. We are Custom YL Series Capacitorstart And Run Single-phase Asynchrcnous Motor Manufacturers and China YL Series Capacitorstart And Run Single-phase Asynchrcnous Motor Suppliers, The products are made of high-quality aluminum alloy shell, beautiful appearance, light weight and never rust. They are widely used in light industry, chemical industry, food, packaging, glass machinery, ceramics, pharmaceuticals and other industries and various production automatic lines, transfer lines, assembly lines, etc. that require speed regulation, and are well received by customers.
