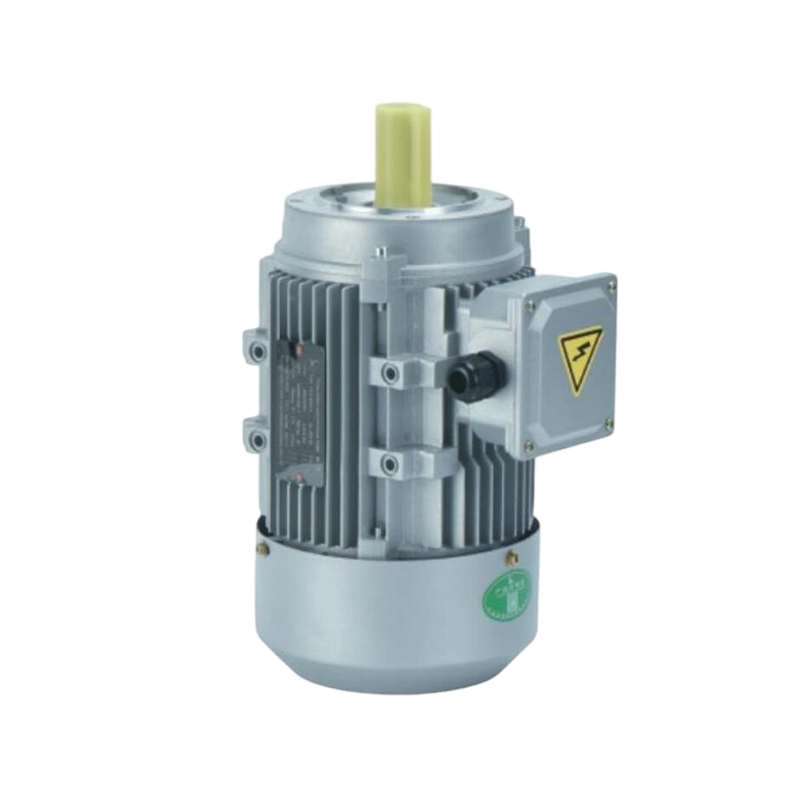

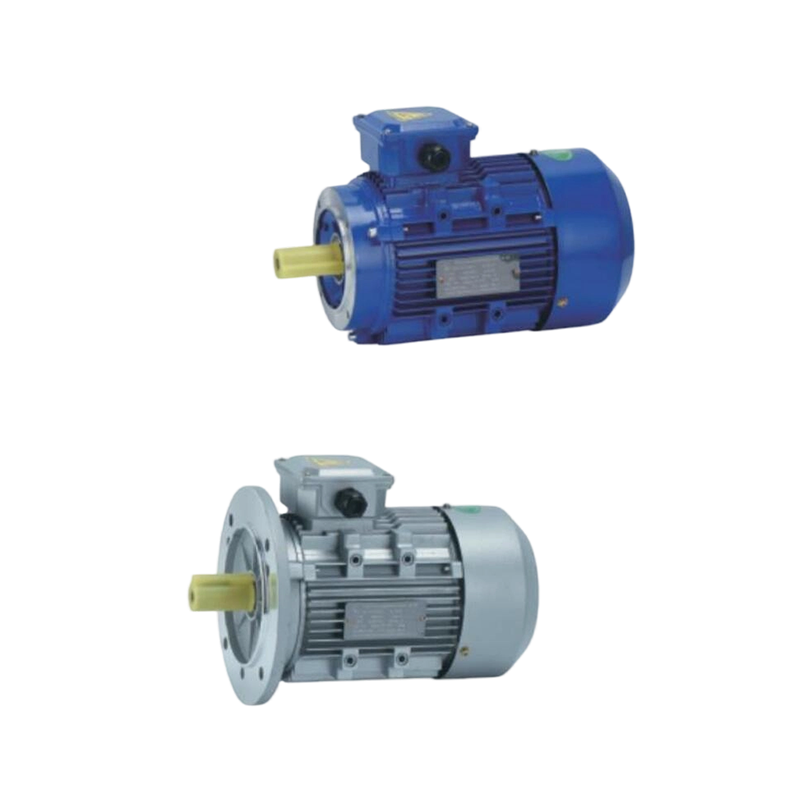

YE3 Series Aluminum Alloy Housing Asynchronous Motor

Technical Performance Data

Motor Type	Power		Voltage	Current	Frequency	Speed	Efficiency	Power factor	ILR/Irated	TLR/trated	Tmax/Trated	Noise
	kW	Hp	V	A	Hz	(r/min)	%	Cos				Lw dB (A)
YE3-631-2	0.18	0.25	380	0.5	50	2800	65	0.8	5.5	2.2	2.2	61
YE3-632-2	0.25	0.33	380	0.7	50	2800	68	0.81	5.5	2.2	2.2	61
YE3-711-2	0.37	0.5	380	1	50	2800	70	0.81	6.1	2.2	2.2	64
YE3-712-2	0.55	0.75	380	1.4	50	2800	73	0.82	6.1	2.2	2.3	64
YE3-80M1-2	0.75	1	380	1.8	50	2825	75	0.83	6.1	2.2	2.3	67
YE3-80M2-2	1.1	1.5	380	2.6	50	2825	76.2	0.84	7	2.2	2.3	67
YE3-90S-2	1.5	2	380	3.34	50	2840	78.5	0.84	7	2.2	2.3	72
YE3-90L-2	2.2	3	380	4.69	50	2840	81	0.85	7	2.2	2.3	72
YE3-100L-2	3	4	380	6.14	50	2880	82.6	0.87	7.5	2.2	2.3	76
YE3-112M-2	4	5.5	380	7.83	50	2890	84.2	0.88	7.5	2.2	2.3	77
YE3-132S1-2	5.5	7.5	380	10.7	50	2900	85.7	0.88	7.5	2.2	2.3	80
YE3-132S2-2	7.5	10	380	14.2	50	2900	87	0.88	7.5	2.2	2.3	80
YE3-160M1-2	11	15	380	20.9	50	2930	88.4	0.89	7.5	2.2	2.3	86
YE3-160M2-2	15	20	380	27.9	50	2930	89.4	0.89	7.5	2.2	2.3	86
YE3-160L-2	18.5	25	380	33.9	50	2930	90	0.9	7.5	2.2	2.3	86
YE3-631-4	0.12	0.16	380	0.4	50	1400	57	0.72	4.4	2.1	2.2	52
YE3-632-4	0.18	0.25	380	0.6	50	1400	60	0.73	4.4	2.1	2.2	52
YE3-633-4	0.25	0.35	380	0.8	50	1400	64	0.74	5.2	2.1	2.2	55
YE3-711-4	0.25	0.33	380	0.8	50	1400	65	0.74	5.2	2.1	2.2	55
YE3-712-4	0.37	0.5	380	1.1	50	1400	67	0.75	5.2	2.1	2.3	58
YE3-80M1-4	0.55	0.75	380	1.6	50	1390	71	0.75	5.2	2.4	2.3	58
YE3-80M2-4	0.75	1	380	2	50	1390	73	0.76	6	2.3	2.3	60
YE3-80M3-4	1	1.4	380	2.5	50	1400	75	0.76	6	2.3	2.3	61
YE3-90S-4	1.1	1.5	380	2.8	50	1400	76.2	0.77	6	2.3	2.3	61
YE3-90L-4	1.5	2	380	3.65	50	1400	78.5	0.79	6	2.3	2.3	61
YE3-100L1-4	2.2	3	380	5.05	50	1420	81	0.81	7	2.3	2.3	64
YE3-100L2-4	3	4	380	6.64	50	1420	82.6	0.82	7	2.3	2.3	64
YE3-112M1-4	4	5.5	380	8.62	50	1440	84.2	0.82	7	2.3	2.3	65
YE3-112M2-4	5	6.7	380	10.3	50	1440	87	0.83	7	2.3	2.3	71
YE3-132S-4	5.5	7.5	380	11.5	50	1440	85.7	0.83	7	2.3	2.3	71
YE3-132M-4	7.5	10	380	15.3	50	1440	87	0.84	7	2.3	2.3	71
YE3-160M-4	11	15	380	22.2	50	1460	88.4	0.84	7	2.2	2.3	75
YE3-160L-4	15	20	380	29.8	50	1460	89.4	0.85	7.5	2.2	2.3	75
YE3-711-6	0.18	0.25	380	0.8	50	900	56	0.66	4	1.9	2	52
YE3-712-6	0.25	0.33	380	0.9	50	900	59	0.68	4	1.9	2	52
YE3-80M1-6	0.37	0.5	380	1.3	50	900	62	0.7	4.7	1.9	2	54
YE3-80M2-6	0.55	0.75	380	1.8	50	900	65	0.72	4.7	1.9	2.1	54
YE3-90S-6	0.75	1	380	2.3	50	910	69	0.72	5.5	2	2.1	57
YE3-90L-6	1.1	1.5	380	3.2	50	910	72	0.73	5.5	2	2.1	61
YE3-100L-6	1.5	2	380	3.9	50	940	76	0.75	5.5	2	2.1	61
YE3-112M-6	2.2	3	380	5.6	50	940	79	0.76	6.5	2	2.1	65
YE3-132S-6	3	4	380	7.4	50	960	81	0.76	6.5	2.1	2.1	69
YE3-132M1-6	4	5.5	380	9.9	50	960	82	0.76	6.5	2.1	2.1	69
YE3-132M2-6	5.5	7.5	380	12.9	50	960	84	0.77	6.5	2.1	2.1	69
YE3-160M-6	7.5	10	380	16.9	50	970	86	0.77	6.5	2	2.1	73
YE3-160L-6	11	15	380	24	50	970	87.5	0.78	6.5	2	2.1	73
YE3-80M1-8	0.18	0.25	380	0.9	50	690	51	0.61	3.3	1.8	1.9	52
YE3-80M2-8	0.25	0.33	380	1.2	50	690	54	0.61	3.3	1.8	1.9	52
YE3-90S-8	0.37	0.5	380	1.5	50	690	62	0.61	4	1.8	1.9	56
YE3-90L-8	0.55	0.75	380	2.2	50	690	63	0.61	4	1.8	2	56
YE3-100L1-8	0.75	1	380	2.4	50	700	71	0.67	4	1.8	2	59
YE3-100L2-8	1.1	1.5	380	3.3	50	700	73	0.69	5	1.8	2	59
YE3-112M-8	1.5	2	380	4.4	50	700	75	0.69	5	1.8	2	61
YE3-132S-8	2.2	3	380	6	50	710	78	0.71	6	1.8	2	64
YE3-132M-8	3	4	380	7.9	50	710	79	0.73	6	1.8	2	64
YE3-160M1-8	4	5.5	380	10.3	50	720	81	0.73	6	2	2	68
YE3-160M2-8	5.5	7.5	380	13.6	50	720	83	0.74	6	2	2	68
YE3-160L-8	7.5	10	380	17.8	50	720	85.5	0.75	6	2	2	68

Hangzhou Yinghang Reduction Gears Co., Ltd. : adjacent to Shanghai-Hangzhou-Ningbo Expressway and Xiaoshan International Airport, located in China's industrial and commercial center, with superior geographic information technology and humanistic environment, the company's products are sold all over the country and exported to Europe, America, the Middle East, South Asia and Australia.
After years of rapid and steady development, our company has become a backbone enterprise in Hangzhou Reducer Town. We are Custom YE3 Series Aluminum Alloy Housing Asynchronous Motor Manufacturers and China YE3 Series Aluminum Alloy Housing Asynchronous Motor Suppliers, The products are made of high-quality aluminum alloy shell, beautiful appearance, light weight and never rust. They are widely used in light industry, chemical industry, food, packaging, glass machinery, ceramics, pharmaceuticals and other industries and various production automatic lines, transfer lines, assembly lines, etc. that require speed regulation, and are well received by customers.
