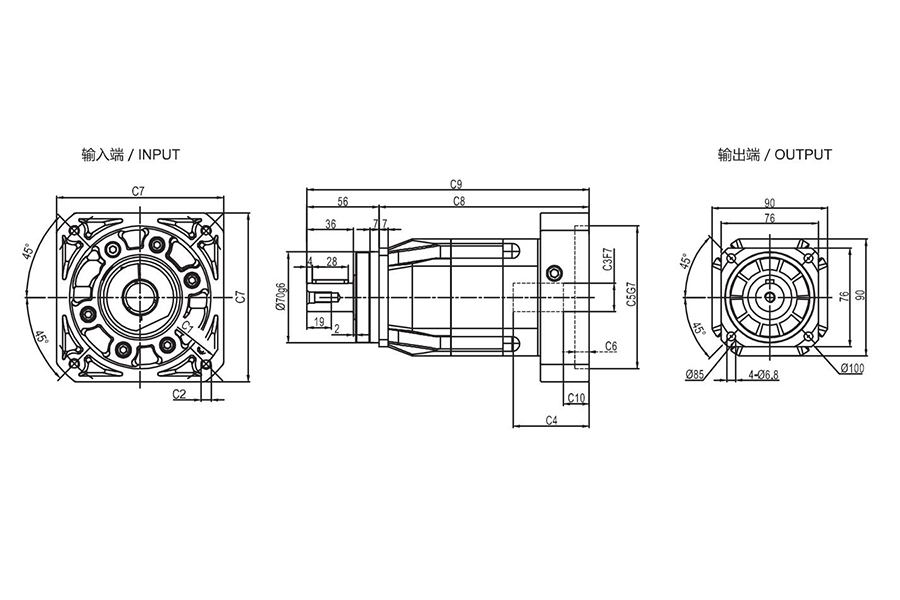

FAF

Product Dimension

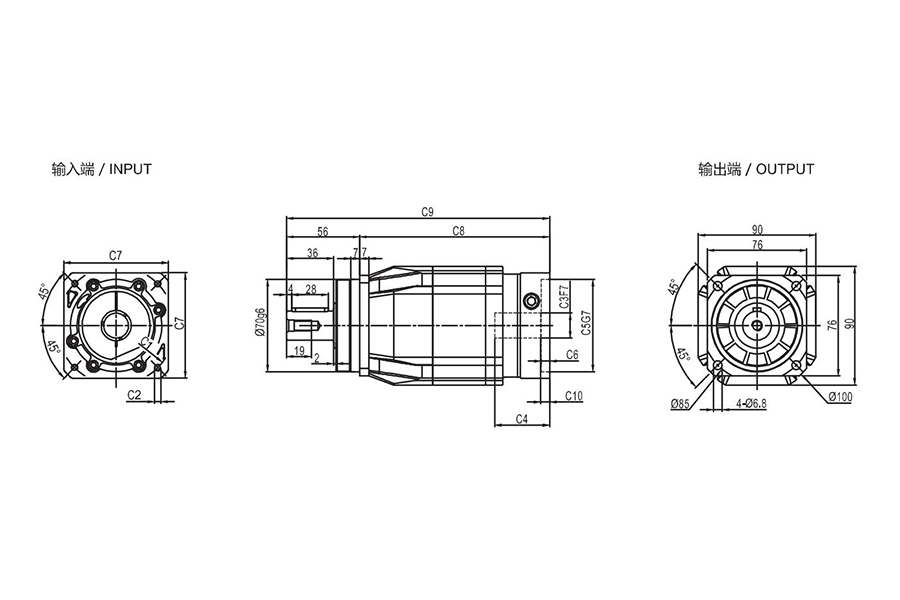

FAF-075A-L2

FAF-075A-L2

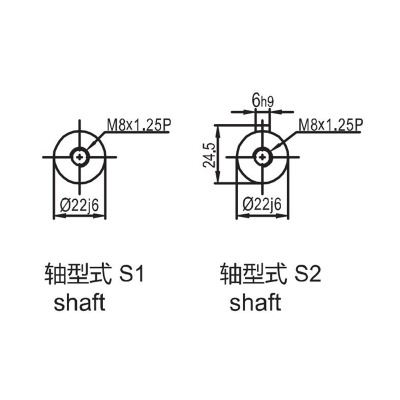

Output Diameter

Size	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12
FAF-075A-L2	Ø90	4-M5×12,4-M6×14	Ø19	45	Ø70	6.5	80	156.5	249.5	7	96	141
	Ø100	4-M6×14	Ø16	45	Ø80	6.5	86	156.5	249.5	6	96	141
FAF-075AM1-L2	Ø115	4-M8×20	Ø19,Ø22	56.5	Ø95	8	100	156.5	254.5	16.5	117.5	162.5
	Ø145	4-M8×20	Ø19,Ø22,Ø24	59	Ø110	10	130	156.5	269.5	19	120	165

*C1~C7aremotor(metric standard) specific dimensions, which could be customized.
*M1:Limit hole (Versionnumber)

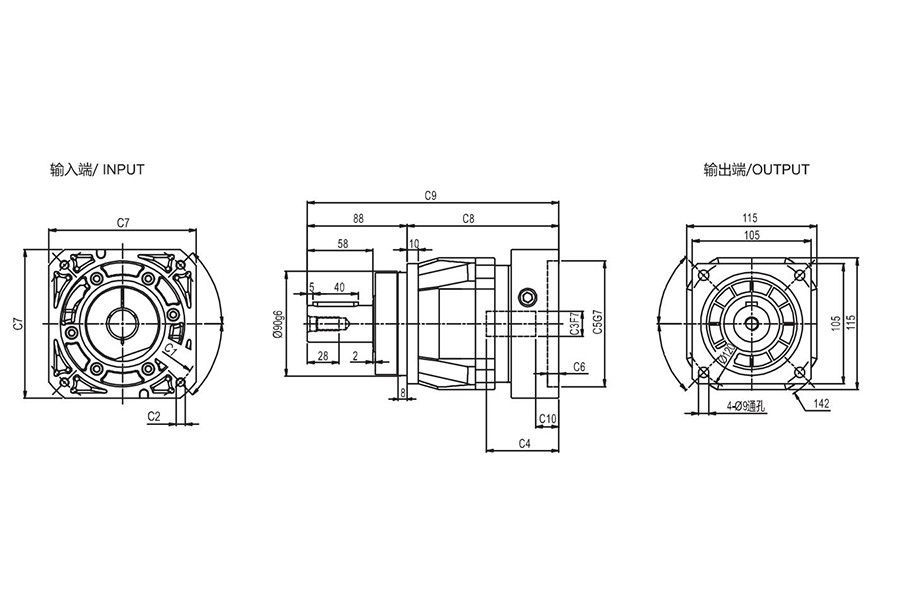

FAF-100-L1

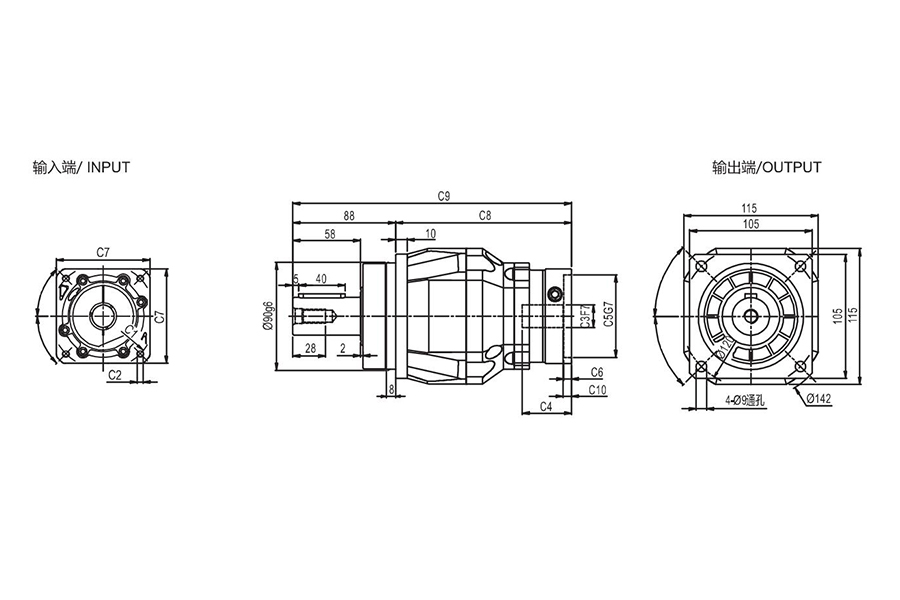

FAF-100-L2

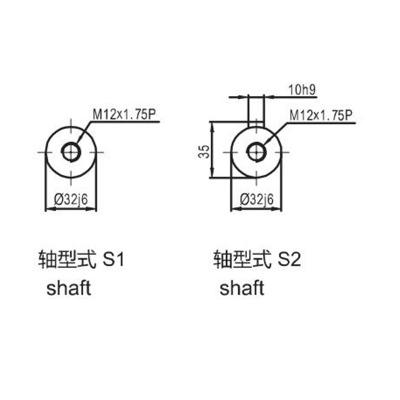

Output Diameter

Size	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10
FAF-100-L1	Ø145	4-M8×20	Ø19,Ø22,Ø24	64	Ø110	10	130	134	222	19.5
FAF-100M1-L1	Ø200	4-M12×28	Ø35	81	Ø114.3	10	180	151.5	239.5	28
FAF-100-L2	Ø90	4-M5×12,4-M6×14	Ø19	42	Ø70	6.5	80	150.5	238.5	7
	Ø100	4-M6×14	Ø16	42	Ø80	6.5	86	150.5	238.5	6
FAF-100M1-L2	Ø115	4-M8×20	Ø19,Ø22	56.5	Ø95	8	100	166	254	16.5
	Ø145	4-M8×20	Ø19,Ø22,Ø24	59	Ø110	11	130	168.5	256.5	19

*C1~C7are motor(metricstandard) specificdimenisions, whichcouldbecustomized.
*M1:Limit hole(Versionnumber)
