In modern industrial systems, mechanical transmission plays a crucial role in ensuring stable and efficient operations. Among various transmission devices, the worm gear reducer—also known as a worm gear speed reducer—has become widely adopted due to its ability to deliver high torque at low speeds while maintaining a compact structure. This device combines a worm (similar to a screw) and a worm wheel (similar to a gear), creating a unique meshing method that allows for significant speed reduction and smooth power transfer.

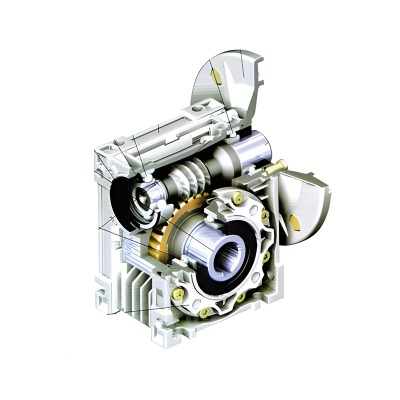

A worm gear reducer is a type of mechanical speed reduction device that uses a worm (a screw-like shaft) and a worm wheel to transmit power. The worm meshes with the wheel at a right angle, allowing rotational motion to be slowed down while torque is significantly increased. This unique meshing method makes worm gear reducers especially useful in situations that require compact design, low-speed output, and high torque transfer.
Unlike other types of gear reducers, worm gear speed reducers are well-known for their self-locking properties, meaning that in certain designs, the worm can drive the wheel, but the wheel cannot drive the worm. This characteristic is highly beneficial in applications like lifting, hoisting, and conveyor systems, where unintentional reverse movement must be avoided.
When compared with other gear reduction technologies, worm gear reducers stand out for their simplicity of structure and versatility of use. They are widely applied in automation equipment, material handling systems, agricultural machinery, and heavy-duty lifting devices, thanks to their reliability and compact form.
| Type of Reducer | Transmission Method | Common Applications | Key Features |
|---|---|---|---|
| Worm Gear Reducer | Worm + Worm Wheel | Lifting, conveyors, industrial machinery | High torque, low speed, compact design |
| Helical Gear Reducer | Helical gears | Power equipment, general machinery | High efficiency, low noise |
| Planetary Gear Reducer | Planetary gear system | Robotics, precision equipment | High precision, small size |
The worm gear reducer and its variant, the worm gear speed reducer, have become indispensable in a wide range of industries. Their ability to combine compact structure with high torque output makes them ideal for tasks that require both reliability and efficiency. From conveyors to lifting devices, worm gear reducers support numerous sectors where mechanical stability is a top priority.
One of the most common uses is in conveyor and material handling systems, where smooth, continuous motion is essential. The compact design allows these reducers to fit within limited spaces, while their torque characteristics ensure stable transport of goods without slippage.
In agricultural machinery, worm gear reducers are employed to manage tasks such as soil tilling, seed processing, and crop transportation. Their durability helps equipment withstand harsh outdoor environments, including dust and mud.
They are also crucial in automation equipment, where precision control of movement is required. Whether integrated into robotic arms or manufacturing systems, worm gear speed reducers enable exact positioning with minimal noise.
For lifting and hoisting applications, worm gear reducers play a safety-critical role. Their self-locking property prevents reverse motion, ensuring that heavy loads remain secure even if the motor stops unexpectedly.
| Application Scenario | Recommended Reducer Type | Key Considerations |
|---|---|---|
| Conveyor Systems | Worm Gear Speed Reducer | Continuous operation, stability |
| Agricultural Machinery | Compact Worm Gear Reducer | Dust-proof, mud-proof durability |
| Automation Equipment | Worm Gear Motor | Precision control, low noise |
| Lifting and Hoisting | High Torque Worm Gear Reducer | Load security, self-locking safety |
The widespread use of the worm gear reducer and worm gear speed reducer is not only due to their versatility but also because of their distinctive technical advantages. These devices offer a balance of compactness, power, and reliability, making them essential in diverse industrial applications.
One of the most significant benefits of worm gear reducers is their ability to deliver high torque output even at low speeds. This is a crucial feature in applications such as heavy-duty lifting and conveyors, where stable force is needed to move or hold loads. By converting speed into torque, the worm gear system ensures smooth and powerful motion without sudden jerks or instability.
The right angle worm gear reducer design enables effective power transmission in tight spaces. Unlike parallel shaft reducers, worm gear speed reducers allow engineers to design compact machinery layouts without sacrificing performance. This is especially valuable in automation and conveyor systems, where space efficiency directly impacts productivity.
Noise control is another advantage of worm gear technology. Due to the sliding contact between the worm and worm wheel, the transmission produces less vibration and lower noise levels compared with other types of reducers. For industries such as robotics, food processing, or laboratory automation, where quiet operation is a requirement, this feature becomes a key advantage.
Many worm gear reducers possess a self-locking mechanism, preventing back-driving of the worm wheel. This adds a layer of safety in lifting and hoisting applications, where reverse motion could pose a risk.
While worm gear reducers generally have lower efficiency than helical gear reducers due to sliding friction, advancements in materials, lubrication methods, and precision manufacturing have improved their performance. For certain applications, the efficiency-to-safety ratio still makes them the most suitable choice.
Although worm gear reducers and worm gear speed reducers are durable and reliable, their performance and service life depend greatly on proper operation and maintenance. Incorrect use or neglect can lead to premature wear, overheating, or even mechanical failure. To maximize efficiency and longevity, several precautions should always be followed.
Lubrication is the most critical factor in maintaining smooth operation. The worm and worm wheel work through sliding contact, which generates friction and heat. Using the correct gear oil reduces wear and ensures stable performance. Oil should be replaced periodically to prevent contamination by dust, moisture, or metal particles.
Improper alignment during installation can lead to uneven wear and increased noise. Mounting should be done on a stable, vibration-free base, and couplings should be checked for misalignment. The use of flange mounting or direct coupling can help improve precision.
Every worm gear speed reducer has a rated torque capacity. Operating consistently above this limit accelerates wear and may damage the worm or wheel. Monitoring load levels and integrating overload protection systems ensures safe operation.
Because sliding motion generates heat, extended operation at high speeds or heavy loads can raise the temperature significantly. Adequate ventilation, cooling devices, or heat sinks should be considered in high-duty applications.
Early detection of problems such as abnormal noise, vibration, or oil leakage can prevent costly downtime. Scheduled inspections help identify issues before they escalate.
| Maintenance Task | Recommended Interval | Key Notes |
|---|---|---|
| Lubricant replacement | Every 1000 operating hours | Use specialized gear oil; avoid contamination |
| Seal inspection | Quarterly | Prevent oil leakage, maintain efficiency |
| Load monitoring | Continuous | Ensure torque remains within rated capacity |
| Noise and vibration check | Every 6 months | Detect misalignment or wear early |
| Temperature monitoring | During operation | Prevent overheating and extend lifespan |
Selecting the right worm gear reducer or worm gear speed reducer is a critical step in ensuring that machinery operates efficiently and safely. Since each industrial application has unique requirements, the reducer must be carefully matched to the equipment’s load, speed, and environmental conditions.
The first step is to determine the torque demand of the machine. For lifting or heavy-duty equipment, a high torque worm gear reducer is required. Undersizing the reducer will cause premature wear, while oversizing may lead to unnecessary cost.
The reduction ratio defines how much the input speed is reduced at the output. Worm gear speed reducers offer a wide range of ratios, typically from 5:1 to 100:1, making them suitable for conveyors, automation systems, and precise control equipment.
The choice of installation depends on the machine’s layout. Options include base mounting, flange mounting, and direct coupling. For compact automation systems, flange mounting often provides higher accuracy and space efficiency.
For applications in laboratories, food processing, or robotics, low noise worm gear motors are essential. In outdoor environments such as agriculture, dust- and mud-proof designs are preferred to ensure long service life.
Some industrial setups require special shaft dimensions, housing materials, or seals. Custom configurations should be considered when standard models do not fully meet operational demands.
| Parameter | Typical Range | Key Influencing Factors |
|---|---|---|
| Output Torque (Nm) | 50 – 5000 | Equipment load and duty cycle |
| Reduction Ratio | 5:1 – 100:1 | Required speed adjustment |
| Mounting Method | Base, flange, direct mount | Space constraints and precision needs |
| Noise Level | < 65 dB | Application environment requirements |
| Service Life | 10,000+ hours (with care) | Lubrication, load conditions, cooling |
The industrial landscape is evolving rapidly, and the role of worm gear reducers continues to expand in response to new technological demands. While these devices are already well-established for their high torque output and compact design, future developments are expected to enhance their efficiency, adaptability, and longevity. Several key trends are shaping the next generation of worm gear speed reducers.
Traditionally, worm gear reducers have been considered less efficient than helical or planetary alternatives due to sliding friction. However, advancements in gear geometry, surface finishing, and lubrication technology are helping to minimize energy losses. By optimizing tooth profiles and reducing frictional resistance, manufacturers are achieving higher worm gear reducer efficiency, making them more attractive for energy-conscious industries.
As industries adopt digital transformation, smart worm gear reducers with integrated sensors are becoming a possibility. These sensors monitor parameters such as temperature, vibration, and load in real time, transmitting data to predictive maintenance systems. This intelligent monitoring reduces unexpected downtime and ensures safe operation, especially in automation and heavy-duty lifting applications.
The use of innovative materials is also driving the future of worm gear reducers. Specialized alloys, composite housings, and wear-resistant coatings help increase durability and reduce maintenance frequency. Lightweight materials are being explored for compact machinery, without compromising on strength.
Noise reduction remains a priority, especially for industries like robotics, laboratories, and medical equipment. New engineering approaches to improve worm gear reducer noise reduction are expected to deliver quieter operation while maintaining torque performance.
Future worm gear speed reducers are likely to feature more modular designs, allowing users to customize ratios, mounting methods, and housing materials. This flexibility ensures compatibility with a broader range of applications and industries.
The worm gear reducer and its variant, the worm gear speed reducer, remain indispensable components in modern industrial machinery. Their ability to deliver high torque, compact structure, low noise, and reliable safety features ensures that they play a critical role in applications ranging from conveyors and agricultural equipment to automation systems and heavy lifting devices.
At the same time, these devices require careful attention to installation precision, lubrication management, load monitoring, and regular maintenance. By following recommended precautions, operators can significantly extend the lifespan of the equipment, reduce downtime, and maximize overall efficiency.
